Random Koch Curve

1 collaborator

WHAT IS IT?

This is a model that is based on the Koch curve model in NetLogo Models library, but it has added some randomness to it.

HOW IT WORKS

The rule that generates the fractal is shown below.

________________________ Step 0: "Initiator"

Next step is dependent on randomness. Suppose we flip a coin and if it is heads we iterate like this:

             /\
            /  \
           /    \
          /      \
  _______/        \_______     Step 1: "Generator (heads)"

but if it is tails we get iteration to follow this picture:

  _______          _______
         \        /
          \      /
           \    /
             \  /
                   \/     Step 1: "Generator (tails)"

and for every iteration one of generators is used.

HOW TO USE IT

Click on the setup button to generate initiator, then press the step button to iterate once. You can check number of turtles in monitor bar.

THINGS TO NOTICE

This model, based on the original Koch Curve NetLogo model, with the feature of random choice can produce fractals that may be used in interpreting some of nature occurring fractals. Fractals produced using this model can look like coastal line shapes, etc.

AUTHORSHIP

The original framework was designed by Uri Wilensky (see credits below) with some extensions made by Miloš Adamović. Uri Wilensky's model Koch Curve acted as a basis for this model.

RELATED MODELS

Koch Curve

CREDITS AND REFERENCES

This work is based on:

Wilensky, U. (1998). NetLogo Koch Curve model. http://ccl.northwestern.edu/netlogo/models/KochCurve. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

It was enhanced by: Miloš Adamović, (october 2015).

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

to setup
  clear-all
  set-default-shape turtles "line half"
  create-turtles 1
    [ set heading 90
      setxy 16 0
      set color blue
      set size world-width * 2 ]
  reset-ticks
end

to step
  ask turtles[
   if-else ((random 2) = 0)[iterateone][iteratetwo]
   die
   ]
  tick
end

to iterateone
  set size size / 3
  hatch 1
  forward size / 2
  lt 60
  hatch 1
  forward size / 2
  rt 120
  hatch 1
  forward size / 2
  lt 60
  hatch 1
end

to iteratetwo
  set size size / 3
  hatch 1
  forward size / 2
  rt 60
  hatch 1
  forward size / 2
  lt 120
  hatch 1
  forward size / 2
  rt 60
  hatch 1
end

There is only one version of this model, created almost 10 years ago by Miloš Adamović.

Attached files

File	Type	Description	Last updated

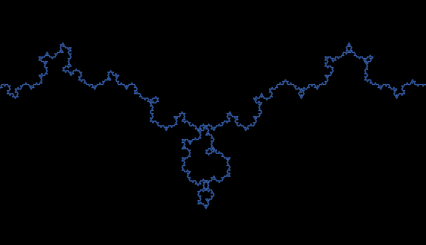

Random Koch Curve.png	preview	Preview for 'Random Koch Curve'	almost 10 years ago, by Miloš Adamović	Download
