Gravity

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                        ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  INITIAL DECLARATIONS  ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                        ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


breed [bending-arrows bending-arrow]
breed [fixed-objects fixed-object]
breed [moving-objects moving-object]


globals [
  max-value-for-colour
  min-value-for-colour

  current-random-seed
]


patches-own [
  bending-direction
  bending-magnitude
  directions-list
  magnitudes-list
]


turtles-own [
  mass
]

moving-objects-own [
 velocity
]


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;              ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  MAIN SETUP  ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;              ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to setup   ; OBSERVER
  do-housekeeping     ; This line should remain BEFORE 'random-seed this-random-seed' (see 'to do-housekeeping' for an explanation of why).

  random-seed this-random-seed     ; See 'to-report this-random-seed' for an explanation of this passage. Also, this line should remain
                                   ; AFTER 'do-housekeeping' (see 'to do-housekeeping' for an explanation of why).

  generate-fixed-objects
  generate-moving-objects

  set-values-for-colour
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                      ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  MAIN GO PROCEDURES  ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                      ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go   ; OBSERVER
  update-space
  ask moving-objects [move]
  if (collisions?) [manage-collisions]
  tick
end

to update-space   ; OBSERVER
; Patches, inteded as bits of space-time, are bended by the presence of mass. The curvature of each patch is the combined effect of the
; individual bendings that each mass imposes on the patch. These are framed as vectors with a direction and a magnitude: the former is
; expressed in NetLogo degrees, the latter is the result of 'to-report bending-propagation' (see note on that procedure for more detail).
; The patch's resulting curvature (also a vector with a direction and a magnitude) is calculated by 'to-report resulting-vector-components'.

  let origins patches with [any? turtles-here]
  let targets target-patches     ; What agents are contained in 'target-patches' depends on the value of 'light-update?' in the Interface:
                                 ; if 'light-update?' is TRUE, 'target-patches' will only contain the patches where a moving object currently
                                 ; is (i.e. only those patches that will need to compute their bending for the purpose of calculating the
                                 ; motion of moving-objects); if 'light-update' is FALSE, all patches will be in 'target-patches'.

  ask targets [
   set directions-list (list)
   set magnitudes-list (list)
   set bending-direction "none"
   set bending-magnitude 0
  ]

  ; At the moment 'origins' (i.e. some patches) are the agents executing this step, because at the moment the possibility of multiple objects
  ; (i.e. turtles) on the same patch is not ruled out. If and when there will be the implementation of objects on the same patch merging, it
  ; will become more convenient to have objects execute this passage, with the introduction of a 'reach' turtles-own variable that won't have
  ; to be computed at every step but only once upon creation (and in the occasion the mass of the object changes, e.g. through collision).
  ask origins [
    let mass-here (sum [mass] of turtles-here)
    let reach (reach-based-on-mass mass-here)
    let relevant-targets (other targets in-radius reach)

    ask relevant-targets [
     set directions-list lput (towards myself) (directions-list)
     set magnitudes-list lput (bending-propagation mass-here) (magnitudes-list)
    ]
  ]

  ; See 'to-report resulting-vector-components' for a thorough explanation of the calculations involved.
  ask targets [
    let sum-vector (resulting-vector-components directions-list magnitudes-list)
    set bending-direction (first sum-vector)
    set bending-magnitude (last sum-vector)
  ]
end

to move   ; MOVING-OBJECTS
  let dir-list (list heading bending-direction)
  let mag-list (list velocity bending-magnitude)

  let sum-vector (resulting-vector-components dir-list mag-list)

  if (first sum-vector = "none") [
   set velocity 0
   stop
  ]

  set heading (first sum-vector)
  set velocity (last sum-vector)

  forward (velocity / 50)
end

to manage-collisions   ; OBSERVER

  let bigger-one NOBODY
  let smaller-one NOBODY

  ask moving-objects [
    if (not any? other moving-objects in-radius 1) [stop]

    let other-object min-one-of (other moving-objects in-radius 1) [distance myself]

    ifelse (mass >= [mass] of other-object)
     [set bigger-one self
      set smaller-one other-object]
     [set bigger-one other-object
      set smaller-one self]

    ask bigger-one [
     let dir-list (list heading [heading] of smaller-one)
     let mag-list (list (velocity * mass) ([velocity] of smaller-one * [mass] of smaller-one))     ; Velocities are multiplied by masses because momentum is the relevant quantity here.
     let sum-vector (resulting-vector-components dir-list mag-list)

     set mass (mass + ([mass] of smaller-one * 1))     ; The reason why this mass calculation is performed at this point (i.e. in the middle of the flow
     set size size-based-on-mass                       ; of commands that manage the call of 'to-report resulting-vector-components' and the result it
                                                       ; provides) is that the old mass is needed to calculate the momentum to be given as input to the
                                                       ; 'to-report resulting-vector-components' procedure, while the new mass is needed to set the new
                                                       ; velocity value based on its results (see comment to that line).

     set heading (first sum-vector)
     set velocity (last sum-vector) / mass     ; The result is divided by mass because that part of results is not a velocity but a momentum (as the
                                               ; 'to-report resulting-vector-component' procedure has been given a list containing momenta instead of
                                               ; velocities).

     ask smaller-one [die]
    ]
  ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                      ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  UTILITIES AT SETUP  ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                      ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to do-housekeeping   ; OBSERVER
; IMPORTANT: This procedure should NOT contain any relevant randomness.
; The reason is that, in 'to setup', the 'random-seed' command is executed after 'do-housekeeping' (otherwise
; the 'clear-all' command included in 'do-housekeeping' would clear the global variable that is set during the
; execution of 'to-report this-random-seed'; check the comment on 'to-report this-random-seed' for more detail
; on this). Given that 'do-housekeeping' has to be executed before 'random-seed' in 'to setup', it follows that
; any relevant randomness in this procedure would be out of the control of the random seed, undermining its
; usefulness.
; Note that, although asking agentsets involves some randomness (because agents in an agentset are invoked in
; random order), this can be considered not-relevant as long as always the same agents are invoked (which is,
; for example, guaranteed by invoking all agents of a type, e.g. not breeds) AND as long as what agents are
; asked to do cannot vary from iteration to iteration (for example: 'ask patches [set pcolor black]'; on the
; contrary, the command 'ask patches [set pcolor black + random 3]' introduces relevant randomness).

  clear-all
  reset-ticks

  resize-world -30 30 -30 30
  set-patch-size 9.57

  ask patches [
   set pcolor spacetime-base-colour + spacetime-shade
   set directions-list (list)
   set magnitudes-list (list)
   set bending-direction "none"
  ]

  set-default-shape fixed-objects "circle 2"
  set-default-shape moving-objects "circle"
  set-default-shape bending-arrows "arrow"
end

to generate-fixed-objects   ; OBSERVER

  if (initial-number-fixed-objects > 0) [

    create-fixed-objects 1 [
     set mass (random 20) + 10    ; 8 8

     set size size-based-on-mass
     set color fixed-objects-base-colour + objects-shade
    ]

    create-fixed-objects (initial-number-fixed-objects - 1) [
     move-to one-of patches with [not any? fixed-objects-here]

     set mass (random 8) + 8

     set size size-based-on-mass
     set color fixed-objects-base-colour + objects-shade
    ]
  ]
end

to generate-moving-objects   ; OBSERVER
  create-moving-objects initial-number-moving-objects [
   move-to min-one-of patches [bending-magnitude]

   set mass (random 4) + 2
   set velocity (random-float 4) + 0.01

   set size size-based-on-mass
   set color moving-objects-base-colour + objects-shade
  ]
end

to set-values-for-colour   ; OBSERVER
; This procedure sets the values of 'bending-magnitude' to be used as maximum and minimum
; values for the range in 'scale-color' (for when the view needs to be updated with arrows
; representing the direction and magnitude of the bending).

  ; The reason for asking these two patches to set the value of 'max-value-for-colour' is because the
  ; intention is to have 'max-value-for-colour' (which will determine the colouring of arrows based
  ; on the bending magnitude of each patch) equal to the bending magnitude that the most massive
  ; object would exert on the closest patch. The bending magnitude of such scenario can be obtained
  ; by using 'to-report bending-propagation', which is a reporting procedure built to be executed
  ; by an agent being asked by another agent (that is because it uses 'distance myself'). Hence, the
  ; need to ask two agents to set this variable; specifically, 'patch 0 0' and 'patch 0 1' have a
  ; distance of 1 between themselves (which is what mimics the bending magnitude that the most massive
  ; object would exert "on the closest patch"; while 'max [mass] of turtles' is what mimics "the most
  ; massive object").
  ; Note that this might need to change if and when it will be implemented a mechanisms (such as some
  ; form of merging of objects that are on the same patch) that will make it possible to be turtles
  ; (via 'mass'), and not patches (via 'sum [mass] of turtles-here'), invoking the 'to-report bending-propagation'
  ; procedure. In that case, in fact, the minimum distance between the involved agents will not be
  ; 1 anymore (i.e. the distance between the centers of two consecutive patches) but it will be less:
  ; something around 0.5 (i.e. the distance between a turtle standing close to the middle of one of
  ; its patch's border and the center of the closest patch).
  ask patch 0 0 [
   ask patch 0 1 [
      set max-value-for-colour (bending-propagation max [mass] of turtles)
      set min-value-for-colour (bending-propagation min [mass] of turtles) * 0.10
    ]
  ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                                ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  COMMUNICATION WITH INTERFACE  ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                                ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to base-view   ; OBSERVER
  ask bending-arrows [
   die
  ]
end

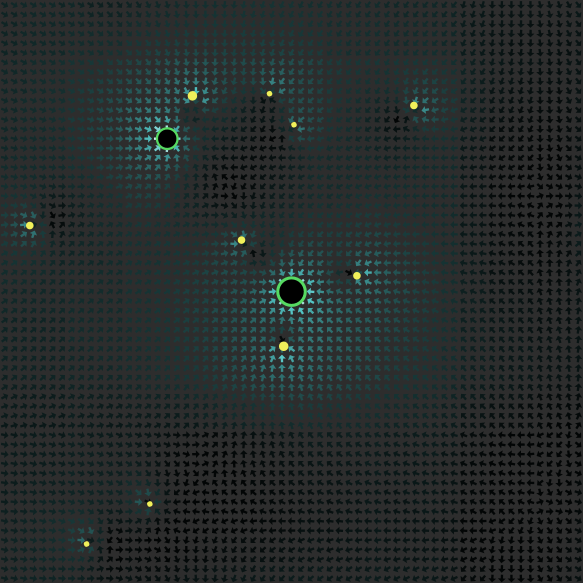

to bending-view   ; OBSERVER
  let have-to-switch? FALSE

  if (light-update?) [
   set light-update? FALSE
   set have-to-switch? TRUE
  ]

  update-space

  if (have-to-switch?) [
   set light-update? TRUE
  ]

  ask patches with [bending-direction != "none"] [
   sprout-bending-arrows 1 [
     set heading bending-direction
     set color compute-colour
    ]
  ]

  if (fill-arrows-view?) [
    ask patches with [bending-direction = "none"] [
     sprout-bending-arrows 1 [
       set heading ([heading] of min-one-of (bending-arrows with [bending-direction != "none"]) [distance myself])
       set color black ;filling-arrows-colour + 2
      ]
    ]
  ]

  ask bending-arrows [
   set size 0.82
  ]
end

to save-this-random-seed   ; OBSERVER
  set random-seed-by-user current-random-seed
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                        ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;  TO-REPORT PROCEDURES  ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;                        ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to-report this-random-seed
; A switch in the Interface lets the user select whether they want to provide a specific random-seed and, in case, an
; input box lets the user define it. Otherwise, a new random-seed is generated automatically with 'new-seed'.
; In both cases, the seed that is actually used is stored in the global variable 'current-random-seed', which is also
; showed in the Interface (to be precise, the value is first stored in the global variable and then, from there, it is
; reported to be used as seed).

  ifelse (select-random-seed?)
   [set current-random-seed random-seed-by-user
    report current-random-seed]
   [set current-random-seed new-seed
    report current-random-seed]
end

to-report size-based-on-mass
  report mass / 5
end

to-report target-patches
  ifelse (light-update?)
   [report patches with [any? moving-objects-here]]
   [report patches]
end

to-report reach-based-on-mass [mass-here]
  let max-ignored-bending 0.0001     ; This is the maximum level of bending magnitude to be ignored (i.e. as if
                                     ; assumed to be small enough to be irrelevant).

  report mass-here * propagation-constant / max-ignored-bending
end

to-report bending-propagation [mass-here]
; The magnitude of bending is directly proportional to mass and inversely proportion to distance, therefore
; it is written here as 'B = (m / d) * k' where 'k' is the 'propagation-constant' set in the Interface.

  report (mass-here / (distance myself)) * propagation-constant
end

to-report resulting-vector-components [dir-list mag-list]
; This reporting procedure performs the sum of vectors. It takes two lists as inputs, that together
; determine the vectors acting on a specific agent: 'dir-list' contains NetLogo degrees indicating
; the directions in which said vectors operate; 'mag-list' contains their magnitudes. The procedure
; reports one list of two items: the first being the direction of the vector resulting from the sum
; of the original vectors; the second being its magnitude.
; This procedure is used both by patches and by objects: patches use it to determine the direction
; and magnitude of their bending (with the inputs being the vectors exerted by nearby objects);
; objects use it to determine the new direction and magnitude of their movement (with the inputs
; being the vector of their own last movement and the vector of their present patch's bending, or
; alternatively the vector of their own last movement and the one of the object they collide with).

  ; Directions expressed in NetLogo angles need to be converted to trigonometric angles, as
  ; this will allow the use of the 'cos' and 'sin' functions.
  let angles-list (list)
  foreach dir-list [
   d -> set angles-list lput (heading-to-angle d) (angles-list)
  ]

  ; The directions and magnitudes of vectors are transformed into the coordinates of the vectors'
  ; head. This is done by applying 'cos' and 'sin' to the vectors' directions and multiplying them
  ; by their lengths.
  let vectors-x (list)
  let vectors-y (list)
  (foreach angles-list mag-list [
    [a m] ->
    set vectors-x lput ((cos a) * m) (vectors-x)
    set vectors-y lput ((sin a) * m) (vectors-y)
    ])


  if (not empty? vectors-x) [
   let resulting-x (sum vectors-x)
   let resulting-y (sum vectors-y)

   if (resulting-x = 0) AND (resulting-y = 0) [report (list "none" 0)]

   let bending-dir (atan resulting-x resulting-y)
   let bending-mag (length-of-resulting-vector resulting-x resulting-y)

   report (list bending-dir bending-mag)
  ]
end

to-report heading-to-angle [h]
; This, used in 'to-report resulting-vector-components', is the formula for converting NetLogo headings (i.e. 0 = N, 90 = E etc)
; to trigonometric degrees (i.e. 0 = E, 90 = N etc). This is necessary in order to apply the 'sin' and 'cos' commands (that use
; trigonometric degrees) to 'directions-list' (that stores the directions from the patch to turtles in NetLogo degrees). This is
; done by converting the latter to 'angles-list'.

  report (90 - h) mod 360
end

to-report length-of-resulting-vector [xx yy]
; This reporting procedure is used to compute the magnitude of patches' bending, with the patch being the point (0;0)
; and the other point (i.e. 'resulting-x' and 'resulting-y') being the head of the vector resulting from the sum of
; all the vectors acting on the patch.
; There are two options. Given that using 'report' immediately exits the procedure, the second option will never be
; used (even if it is not commented) unless the first option is commented.

  ; One option to perform this is to use the formula for the distance between two points in a Cartesian space, with
  ; one of the points being (0;0):
  report ((xx ^ 2) + (yy ^ 2)) ^ (1 / 2)

  ; The other option is to use 'distancexy'. Given that such command computes the distance between the agent executing
  ; the command and the coordinates given as arguments, it would require asking 'patch 0 0' to perform the calculation:
  let result 0
  ask patch 0 0 [set result distancexy xx yy]
  report result
end

to-report compute-colour
  report scale-color arrows-base-colour bending-magnitude min-value-for-colour max-value-for-colour
end
