Aid Defense Allocation Simulator

; IADS Missile Battery Simulation
; Based on Han, Lunday & Robbins (2016)

globals [
  city-size          ; size of city patches
  initial-total-value  ; store initial total value for comparison
  total-intercepted-missiles  ; all intercepted missiles to count air defense effeciency
  attack-complete?   ; stop flag for BehaviorSpace
]

patches-own [
  coverage-intensity  ; for visualizing overlapping coverage
  damage-level        ; for visualizing city damage
]

breed [cities city]
breed [batteries battery]
breed [missiles missile]

cities-own [
  value       ; city value/population
  protected?  ; whether city is protected by battery
]

batteries-own [
  remaining-interceptors  ; number of interceptors left
]

missiles-own [
  target        ; targeted city
  intercepted?  ; whether missile has been intercepted
]

to setup
  clear-all
  setup-globals
  setup-cities
  setup-batteries
  set initial-total-value sum [value] of cities
  set total-intercepted-missiles 0
  set attack-complete? false
  update-protection-status
  update-visualizations
  reset-ticks
end

to setup-globals
  set city-size 1
  ask patches [
    set coverage-intensity 0
    set damage-level 0
  ]
end

to setup-cities
  ; Create cities with random locations and values
  create-cities num-cities [
    setxy random-xcor random-ycor
    set size city-size
    set shape "circle"
    set color blue
    set value 10 + random 90 ; Random value between 10-100
    set protected? false
    set label (value)
  ]
end

to setup-batteries
  ask batteries [die]  ; Clear any existing batteries

  (ifelse
    defender-strategy = "highest-value" [
      ; Create a list of cities sorted by decreasing value
      let sorted-cities sort-on [(- value)] cities
      create-batteries num-batteries [
        ; Place each battery at one of the highest-value cities
        let target-city item (who mod length sorted-cities) sorted-cities
        move-to target-city
        initialize-battery
      ]
    ]

    defender-strategy = "max-coverage" [
      create-batteries num-batteries [
        ; For each battery, find the position that maximizes the total value of covered cities
        let best-position max-one-of patches [
          ; Sum the values of all cities within range of this position
          sum [value] of cities in-radius battery-range
        ]
        move-to best-position
        initialize-battery

        ; If batteries overlap too much, adjust position while maintaining good coverage
        while [any? other batteries in-radius (battery-range / 3)] [
          let alternative-position max-one-of patches with [
            not any? batteries in-radius (battery-range / 3)
          ][
            sum [value] of cities in-radius battery-range
          ]
          if alternative-position != nobody [move-to alternative-position]
        ]
      ]
    ]

    defender-strategy = "choke-points" [
      ; First identify strategic points that cover multiple cities
      let strategic-points patches with [
        count cities in-radius battery-range >= 2  ; Points covering at least 2 cities
      ]

      create-batteries num-batteries [
        ifelse any? strategic-points [
          ; Find the strategic point that protects the highest total city value
          let best-point max-one-of strategic-points [
            sum [value] of cities in-radius battery-range
          ]
          move-to best-point
          ; Remove this point and surrounding area from consideration
          ask strategic-points in-radius (battery-range / 2) [
            set strategic-points strategic-points with [self != myself]
          ]
        ][
          ; If no good strategic points left, fall back to highest-value strategy
          let target-city max-one-of cities [value]
          move-to target-city
        ]
        initialize-battery
      ]
    ]

 defender-strategy = "distributed" [
  create-batteries num-batteries [
    ; First try to cover uncovered cities
    let uncovered-cities cities with [
      not any? batteries in-radius battery-range
    ]

    ifelse any? uncovered-cities [
      ; Instead of checking each uncovered city, select from top valuable ones
      let target-city max-one-of (up-to-n-of 5 uncovered-cities) [value]
      move-to target-city
    ][
      ; Instead of checking all patches, only check near cities
      let potential-positions patches with [
        any? cities in-radius battery-range and
        not any? batteries in-radius (battery-range / 2)
      ]
      ifelse any? potential-positions [
        let target-position max-one-of (up-to-n-of 10 potential-positions) [
          count cities in-radius battery-range with [
            count batteries in-radius battery-range < 2
          ]
        ]
        move-to target-position
      ][
        ; If no good positions found, just move to highest value city
        move-to max-one-of cities [value]
      ]
    ]
    initialize-battery
  ]
]

  defender-strategy = "mixed" [
      ; Split total batteries among strategies
      let remaining-batteries num-batteries
      let base-strategies ["highest-value" "max-coverage" "choke-points" "distributed"]

      foreach base-strategies [strategy ->
        if remaining-batteries > 0 [
          ; Allocate some batteries to this strategy
          let strategy-batteries ceiling (remaining-batteries / (length base-strategies))
          set remaining-batteries remaining-batteries - strategy-batteries

          if strategy = "highest-value" [
            let sorted-cities sort-on [(- value)] cities
            create-batteries strategy-batteries [
              let target-city item (who mod length sorted-cities) sorted-cities
              move-to target-city
              initialize-battery
            ]
          ]

          if strategy = "max-coverage" [
            create-batteries strategy-batteries [
              let best-position max-one-of patches [
                sum [value] of cities in-radius battery-range
              ]
              move-to best-position
              initialize-battery

              while [any? other batteries in-radius (battery-range / 3)] [
                let alternative-position max-one-of patches with [
                  not any? batteries in-radius (battery-range / 3)
                ][
                  sum [value] of cities in-radius battery-range
                ]
                if alternative-position != nobody [move-to alternative-position]
              ]
            ]
          ]

          if strategy = "choke-points" [
            let strategic-points patches with [
              count cities in-radius battery-range >= 2
            ]

            create-batteries strategy-batteries [
              ifelse any? strategic-points [
                let best-point max-one-of strategic-points [
                  sum [value] of cities in-radius battery-range
                ]
                move-to best-point
                ask strategic-points in-radius (battery-range / 2) [
                  set strategic-points strategic-points with [self != myself]
                ]
              ][
                let target-city max-one-of cities [value]
                move-to target-city
              ]
              initialize-battery
            ]
          ]

          if strategy = "distributed" [
            create-batteries strategy-batteries [
              let uncovered-cities cities with [
                not any? batteries in-radius battery-range
              ]

              ifelse any? uncovered-cities [
                let target-city max-one-of uncovered-cities [value]
                move-to target-city
              ][
                let target-position max-one-of patches [
                  count cities in-radius battery-range with [
                    count batteries in-radius battery-range < 2
                  ]
                ]
                move-to target-position
              ]
              initialize-battery
            ]
          ]
        ]
      ]
    ]
  )
end

; Helper procedure to set up individual battery properties

to initialize-battery
  set shape "triangle"
  set color red
  set size 2
  set remaining-interceptors num-interceptors
end

to update-protection-status
  ; Reset protection status for all cities
  ask cities [
    set protected? false
  ]

  ; Mark cities as protected if they are within range of any battery with interceptors
  ask cities [
    let city-batteries batteries in-radius battery-range
    if any? city-batteries [
      if sum [remaining-interceptors] of city-batteries > 0 [
        set protected? true
        set color green
      ]
    ]
  ]
end

to go
if not attack-complete? [    ; Only launch attack if not already done
    launch-attack
    while [any? missiles] [
      move-missiles
      intercept-missiles
      destroy-cities
      update-protection-status
      update-visualizations
      update-plots1
      tick
    ]
    set attack-complete? true  ; Set flag when attack is done
  ]
end

to launch-attack
 (ifelse
   attacker-strategy = "highest-value" [
     ; Target the most valuable cities first
     let high-value-targets sort-on [(- value)] cities
     let missiles-remaining num-missiles

     foreach high-value-targets [target1 ->
       ; Stop if we run out of missiles
       if missiles-remaining > 0 [
         create-missiles 1 [
           setup-missile target1
           set missiles-remaining missiles-remaining - 1
         ]
       ]
     ]
   ]

   attacker-strategy = "spread-attack" [
     ; Distribute missiles evenly across as many cities as possible
     let num-targets min list num-missiles count cities
     let target-cities n-of num-targets cities

     foreach sort target-cities [target1 ->
       create-missiles 1 [
         setup-missile target1
       ]
     ]
   ]

   attacker-strategy = "minimal-breach" [
     ; Find a valuable target and concentrate enough missiles to overwhelm its defenses
     let target1 max-one-of cities [
       value * (1 + count batteries in-radius battery-range)  ; Consider both value and defense
     ]

     if target1 != nobody [
       ; Calculate missiles needed to overwhelm defenses
       let defending-batteries batteries with [distance target1 <= battery-range]
       let total-interceptors sum [remaining-interceptors] of defending-batteries
       let missiles-needed min list (total-interceptors + 1) num-missiles

       ; Launch concentrated attack
       repeat missiles-needed [
         create-missiles 1 [
           setup-missile target1
         ]
       ]
     ]
   ]

 attacker-strategy = "concentrated" [
 let primary-target max-one-of cities [value]

 if primary-target != nobody [
   let nearby-cities cities with [
     distance primary-target <= battery-range / 2 and self != primary-target
   ]

   ; Create list of all potential targets
   let target-list (list primary-target)
   if any? nearby-cities [
     set target-list sentence target-list (sort-on [(- value)] nearby-cities)
   ]

   ; Distribute missiles among targets
   let missiles-per-target ceiling (num-missiles / length target-list)
   foreach target-list [target-city ->
     let missiles-to-create min list missiles-per-target (num-missiles - count missiles)
     repeat missiles-to-create [
       create-missiles 1 [
         setup-missile target-city
       ]
     ]
   ]
 ]
]

attacker-strategy = "mixed" [
      let strategies ["highest-value" "spread-attack" "minimal-breach" "concentrated"]
      let remaining-missiles num-missiles

      ; Randomly assign missiles to different strategies
      while [remaining-missiles > 0] [
        let current-strategy one-of strategies
        let missiles-for-strategy 1 + random (min list remaining-missiles (num-missiles / 2))
        set remaining-missiles remaining-missiles - missiles-for-strategy

        ; Apply the chosen strategy for this subset of missiles
        if current-strategy = "highest-value" [
          let high-value-targets sort-on [(- value)] cities
          foreach high-value-targets [target1 ->
            if missiles-for-strategy > 0 [
              create-missiles 1 [
                setup-missile target1
                set missiles-for-strategy missiles-for-strategy - 1
              ]
            ]
          ]
        ]

        if current-strategy = "spread-attack" [
          let num-targets min list missiles-for-strategy count cities
          let target-cities n-of num-targets cities
          foreach sort target-cities [target1 ->
            if missiles-for-strategy > 0 [
              create-missiles 1 [
                setup-missile target1
                set missiles-for-strategy missiles-for-strategy - 1
              ]
            ]
          ]
        ]

        if current-strategy = "minimal-breach" [
          let target1 max-one-of cities [
            value * (1 + count batteries in-radius battery-range)
          ]
          if target1 != nobody [
            let defending-batteries batteries with [distance target1 <= battery-range]
            let total-interceptors sum [remaining-interceptors] of defending-batteries
            let missiles-needed min list (min list (total-interceptors + 1) missiles-for-strategy) missiles-for-strategy
            repeat missiles-needed [
              create-missiles 1 [
                setup-missile target1
              ]
            ]
            set missiles-for-strategy missiles-for-strategy - missiles-needed
          ]
        ]

        if current-strategy = "concentrated" [
          let primary-target max-one-of cities [value]
          if primary-target != nobody [
            let nearby-cities cities with [
              distance primary-target <= battery-range / 2 and self != primary-target
            ]
            let target-list (list primary-target)
            if any? nearby-cities [
              set target-list sentence target-list (sort-on [(- value)] nearby-cities)
            ]
            let missiles-per-target ceiling (missiles-for-strategy / length target-list)
            foreach target-list [target-city ->
              let missiles-to-create min list missiles-per-target missiles-for-strategy
              repeat missiles-to-create [
                create-missiles 1 [
                  setup-missile target-city
                ]
              ]
              set missiles-for-strategy missiles-for-strategy - missiles-to-create
            ]
          ]
        ]
      ]
    ]
    )
end

; Helper procedure for missile setup

to setup-missile [target-city]
  setxy random-xcor max-pycor
  set target target-city
  ifelse random 2 = 0
  [ setxy random-xcor max-pycor ]  ; top of screen
  [ setxy max-pxcor random-ycor ]  ; right side
  set target target-city
  set color orange
  set size 1
  set shape "arrow"
  set intercepted? false
  set xcor xcor + random 10 - 5  ; Add some randomness to launch position
end

to move-missiles
  ask missiles [
    face target
    forward 1
    if show-damage? [
      ask patches in-radius 0.5 [
        set pcolor orange - 2
      ]
    ]
  ]
end

to intercept-missiles
  ask batteries [
    let nearby-missiles missiles in-radius battery-range
    foreach sort nearby-missiles [ m ->
      if remaining-interceptors > 0 and not [intercepted?] of m [
        if random-float 1 < intercept-prob [
          ask m [
            set intercepted? true
            set total-intercepted-missiles total-intercepted-missiles + 1  ; Track successful interceptions
            ; Create explosion effect
            ask patches in-radius 1 [
              set pcolor yellow
            ]
            die
          ]
        ]
        set remaining-interceptors remaining-interceptors - 1
      ]
    ]
  ]
end

to destroy-cities
  ask missiles [
    if distance target < 1 [  ; target is single turtle not agentset
      ask target [
        set color red
        set protected? false
        set damage-level damage-level + 1
        ask patches in-radius (city-size * 2) [
          set pcolor red
          set damage-level damage-level + 1
        ]
      ]
      die
    ]
  ]
end

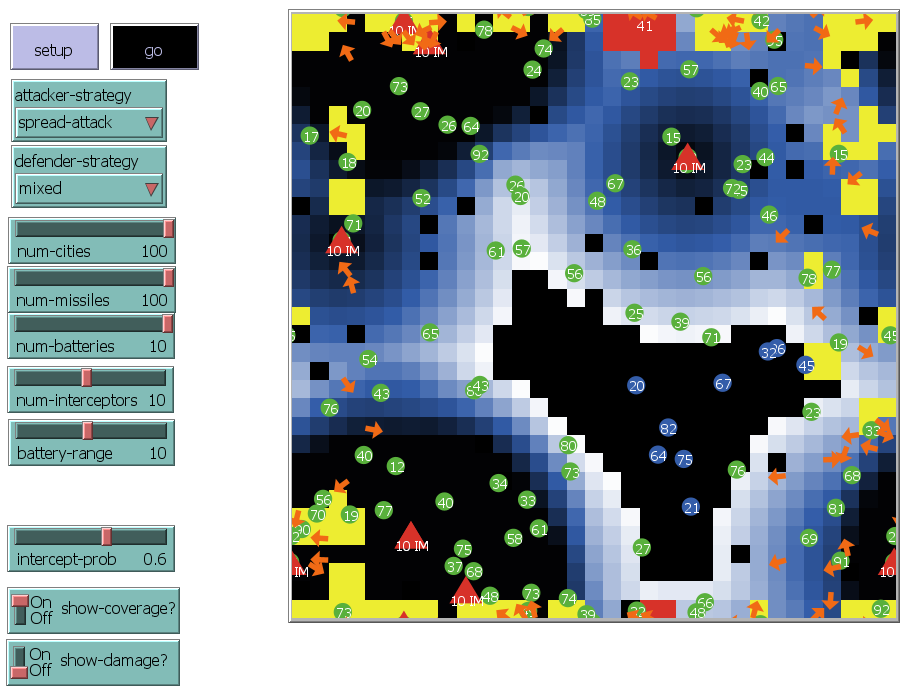

to update-visualizations
  ; Clear previous visualizations
  ask patches [
    set coverage-intensity 0
    if not show-damage? [set pcolor black]
  ]

  ; Update battery coverage visualization with smoother gradients
  if show-coverage? [
    ask batteries [
      let curr-battery self
      ask patches in-radius battery-range [
        let dist distance curr-battery
        let intensity (1 - (dist / battery-range)) * 2
        set coverage-intensity coverage-intensity + intensity
        set pcolor scale-color blue coverage-intensity 2 0
      ]
    ]
  ]

  ; Update damage visualization with smoother gradients
  if show-damage? [
    ask cities [
      ifelse protected? [
        set color green
      ][
        ifelse damage-level > 0 [
          set color scale-color red damage-level 5 0
          set label (word "V:" value " D:" damage-level)
        ][
          set color blue
        ]
      ]
      ; Show damage radius with smooth gradient
      if damage-level > 0 [
        ask patches in-radius (city-size * 3) [
          let dist distance myself
          let dmg-intensity (1 - (dist / (city-size * 3))) * damage-level
          if dmg-intensity > 0 [
            set pcolor scale-color red dmg-intensity 5 0
          ]
        ]
      ]
    ]
  ]

  ; Draw range indicators for batteries with smooth edges
  ask batteries [
    ; Display remaining interceptors
    set label (word remaining-interceptors " IM")
    set label-color white
  ]

  ; Update display for missiles and effects
  ask missiles [
    set color orange
  ]
end

; Basic value reporters

to-report total-city-value
  report sum [ifelse-value (damage-level = 0) [value] [0]] of cities
end

to-report protected-value
  report sum [ifelse-value (protected?) [value] [0]] of cities
end

to-report protection-percentage
  ifelse total-city-value > 0
    [ report (protected-value / total-city-value) * 100 ]
    [ report 0 ]
end
; Strategic effectiveness reporters

to-report city-value-survival-ratio
  ifelse initial-total-value > 0
    [ report precision ((total-city-value / initial-total-value) * 100) 2 ]
    [ report 0 ]
end

to-report defense-efficiency
  ; Measures how efficiently interceptors are being used
  let total-initial-interceptors (num-batteries * num-interceptors)
  let used-interceptors total-initial-interceptors - sum [remaining-interceptors] of batteries
  ifelse used-interceptors > 0
    [ report precision ((total-intercepted-missiles / used-interceptors) * 100) 2 ]
    [ report 0 ]
end

to-report defense-coverage-ratio
  ; Measures what percentage of total city value is under SAM coverage
  let total-value sum [value] of cities
  let covered-value sum [value] of cities with [any? batteries in-radius battery-range]
  ifelse total-value > 0
    [  report precision  ( (covered-value / total-value) * 100) 2 ]
    [ report 0 ]
end

to-report value-loss-percentage
  ; Measures percentage of total value lost to successful attacks
  ifelse initial-total-value > 0
    [ report ((initial-total-value - total-city-value) / initial-total-value) * 100 ]
    [ report 0 ]
end

to-report intercept-success-rate
  ; Measures percentage of missiles successfully intercepted
  let total-launched count missiles + count missiles with [intercepted?]
  ifelse total-launched > 0
    [ report (count missiles with [intercepted?] / total-launched) * 100 ]
    [ report 0 ]
end

to-report defense-saturation
  ; Measures how close batteries are to being overwhelmed
  let avg-interceptors mean [remaining-interceptors] of batteries
  report (avg-interceptors / 20) * 100  ; 20 is initial interceptor count
end

to-report attack-concentration
  ; Measures how concentrated the attack is
  let targeted-cities length remove-duplicates [target] of missiles
  ifelse count missiles > 0
    [ report (targeted-cities / count missiles) * 100 ]
    [ report 0 ]
end

to-report high-value-targeting-ratio
  ; Measures focus on high-value targets
  let top-value max [value] of cities
  let targeted-value mean [value] of cities with [any? missiles with [target = myself]]
  ifelse top-value > 0
    [ report (targeted-value / top-value) * 100 ]
    [ report 0 ]
end

to update-plots1
  set-current-plot "Total Cities Value"
  set-current-plot-pen "Total"
  plot total-city-value
  set-current-plot-pen "Protected"
  plot protected-value

  set-current-plot "Protection Metrics"
  set-current-plot-pen "Protection %"
  plot protection-percentage
  set-current-plot-pen "Value Loss %"
  plot value-loss-percentage

  set-current-plot "Battle Status"
  set-current-plot-pen "Active Missiles"
  plot count missiles
  set-current-plot-pen "Interceptors Left"
  plot sum [remaining-interceptors] of batteries
  set-current-plot-pen "Success Rate"
  plot intercept-success-rate
end
